Stack¶

Stacks and queues are dynamic sets in which the element removed from the set by Delete operation is prespecified.

In a stack, the element deleted from the set is the most recently inserted: the stack implements a last-in, first-out or LIFO, policy.

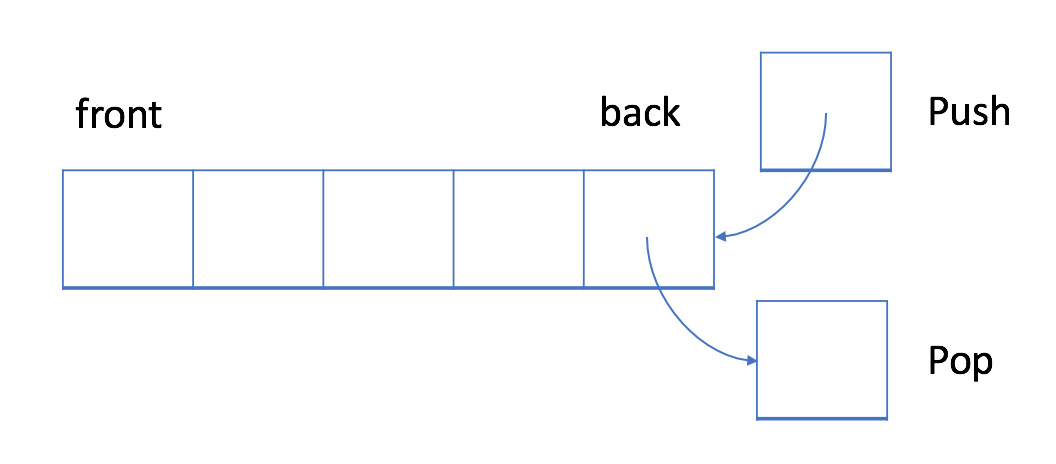

stack

The Insert operation on a stack is often called Push, and the Delete operation, which does not take an element, is often called Pop. These names are allusions to physical stacks, such as the spring-loaded stacks of plates used in cafeteriass. The order in which plates are popped from the stack is the reverse of the order in which they were pushed onto the stack, since only the top plate is accessible.

Problems¶

Implementation¶

This kind of problems mainly contains use other data structures of:

array
linked list
queue

to implement a stack class.

Syntax Parsing¶

This kind of problems are mainly about the few elements at the end of lists, for example:

Paretheses matching, which delete the parentheses matched;
Path finding, which delete the elements at the back if .. occurs.

problems:

Expression Evaluation¶

The tytical problem of this is the calculator. We usually solve this with two stacks:

number stack, which records all numbers to be calculated；
operator stack, which stores operators((, ), +, -, *, /) in increasing grade, (, ) is 0, +, - is 1, *, / is 2.

The general frame is:

stack<string> ops;
stack<int> nums;
int i = 0;
while (i < str.size()) {
  if (is_left_parenth) {
    // push to ops
    ++i;
  } else if (is_right_parenth) {
    // calculate numbers and operators util ops.top() is left parenth
    // ops.pop()
    ++i
  } else if (is_number) {
    // get the whole number
    // push the number to number stack
    ++i
  } else if (is_operator) {
    // if curr_op <= ops.top()
    // calculate the operators
    // push curr_op to operator stack
    ++i
  }
}

Monotonous Stack¶

Monotonous stack make sure that all elements from bottom to top are in increasing or decreasing order. To do so, use the loop:

stack<int> ss{};
for (auto n : nums) {
  while (!ss.empty() && n <= ss.top()) ss.pop();
  ss.push(n);
}

Sometimes we want to choose n number form a list, the relative order of the digits from the list should be preserved and make the new number with the length of n maximum.

This could also be created with monotonous stack:

int drop = arr.size() - n;
stack<int> ss{};
for (auto n : nums) {
  while (drop && !ss.empty() && ss.top() <= n) { ss.pop(); --drop; }
  ss.push(n);
}
while (ss.size() > n) ss.pop();
